EKPM Upgrade Board
EKPM Upgrade Board
Couldn't load pickup availability
Features
- Supports all E series engines including 335i(N54/N55), 335D
- Supports F series N55 PWG/EWG. (EWG support in beta)
- Upgradable firmware and configuration through OBD2 with K+D Can cable
- Crash detection emergency fuel shutoff
- Directly controls two fuel pumps
- Switched grounded output for external relay control
- Works with stock DME and standalones
- Configurable secondary fuel pump trigger source over canbus. No hobb switch is required.
- Supports EKPM2/3
- Does not cause issues with the 15WUP bus unlike other relay-based EKPM delete solutions.
Description
Now’s the time to eliminate all the issues that come with the EKPM. This EKMP replacement board will replace your stock EKPM board. This does not require any additional wiring and uses the stock connectors. This seamlessly works with the stock DME, and standalone ECUs such as Maxxecu, and LSE9x Holley Canbox. The OEM EKPM fails regularly, especially in an engine-swapped car with upgraded pumps, because it’s not being regulated anymore. The stock EKPM is current limited and will limit current with PWM switching. This PWM control limits the voltage and causes heat to be generated.
The EKPM replacement board uses relays to directly control up to two fuel pumps. It has canbus support to emulate the stock EKPM and is capable of up to 25 amps per built-in pump. This board uses high-quality 45 amp relays from TE connectivity, and a grounded output that is configurable based on your pedal position, engine torque, fuel flow rate and is triggerable by a custom canbus message.
This EKPM replacement board includes several features including crash detection from the airbag modules that will turn off the fuel pumps in the event of a crash. The fuel pump(s) will not consistently run while the ignition is on and the engine is off. There is an additional relay control pin that will allow you to activate an external relay to control a third or more fuel pumps.
Versions
| NO Canbus - Single Relay | The "NO Canbus" version activates the Relay when the 15_WUP (Ignition-on wire) is powered. This version is considered a EKPM delete/bypass due to the lack of canbus support. |
| Canbus - Single Relay w/ switched ground | Switched ground option comes with a wire to insert into your stock EKPM connector to be able to trigger an additional external relay. |

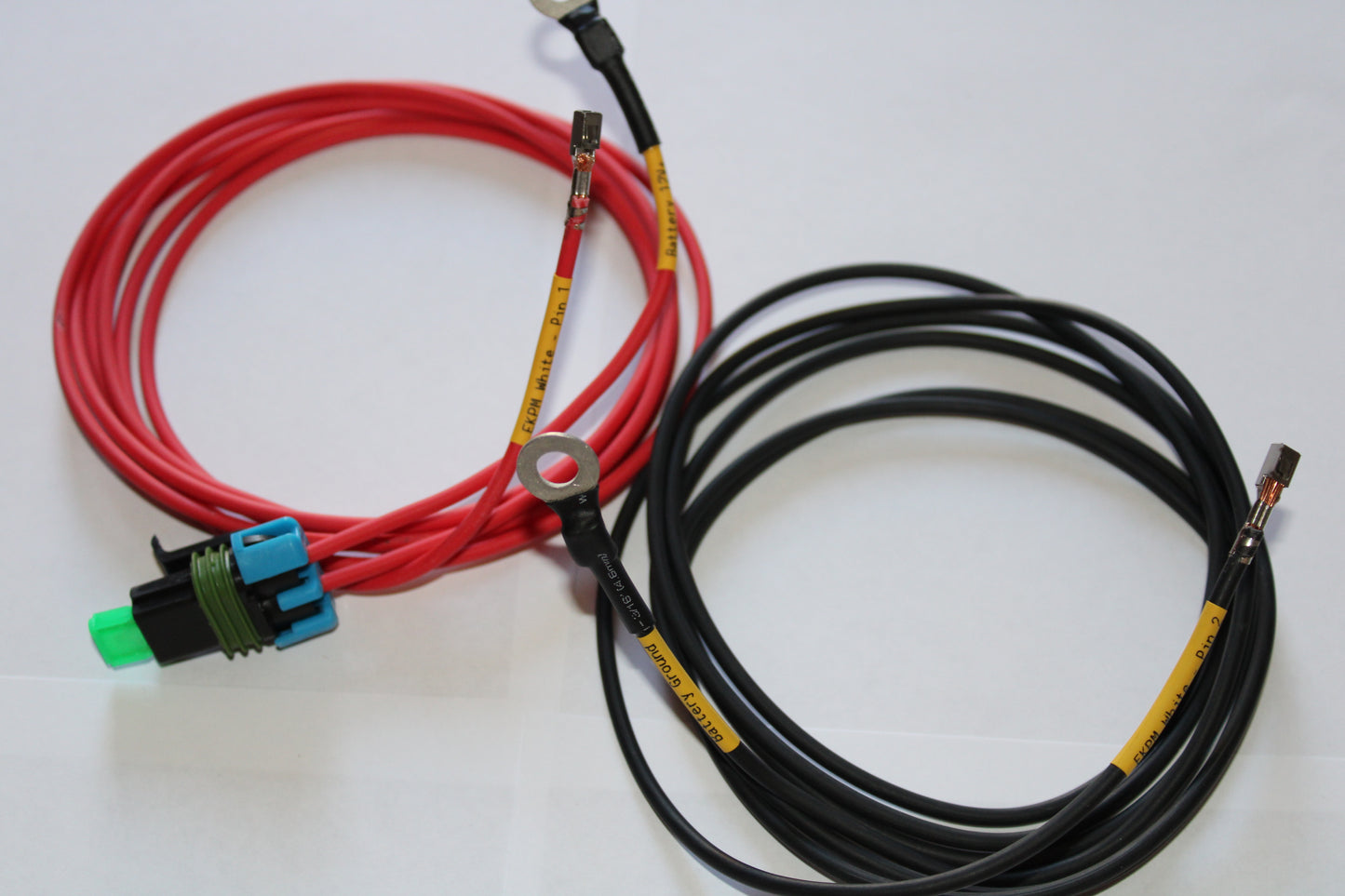

| Canbus - Dual Relay w/ switched ground | Dual relay version comes with wiring harness to connect second fuel pump. Also comes with the switched ground wire. |
Fitment Notice
The following EKPM part numbers will require trimming of the plastic cover for the relay(s) to fit. Please verify stock EKPM is at-least 4.2 inches long prior to ordering:
- 16147263392
- 16147268028
- 16147276046
The following EKPM part numbers do not fit as the board is too long. We are working on a billet enclosure for these:
- 16147407513
If your EKPM enclosure is too small, then add this EKPM enclosure on to your order. We will ship your EKPM as completed module (board installed in enclosure).
Planned Features
- M3 Kombi Shiftlight control
